MassDOT Public-Private Partnership Generates Solar Energy on Highway Rights of Way

Table of Contents

Generating 6 megawatts (MW) of electricity per year from solar farms is not a typical goal for a state transportation agency. But for Massachusetts DOT (MassDOT), setting that goal is part of a 20-year public-private partnership it has embarked upon with a renewable energy company located in the eastern part of the state.

Under the contract, the private sector partner has agreed to finance, develop, design, construct, commission, operate, maintain, and eventually decommission solar facilities at ten pre-approved sites it leases across the state. The rows of ground-mounted solar panels are located on small parcels of state-owned land along highway embankments, exit ramps, and service plazas.

Phase 1A of the MassDOT Highway Right of Way Solar Photovoltaic Energy Program was completed in October 2015 and included five locations. Phase 1B, comprising five additional locations, is awaiting start of construction. And Phase2A, as envisioned, will include three additional sites.

“We are very pleased to be spearheading an initiative that is bringing both economic and environmental benefits,” says Hongyan Oliver, Project Manager of the solar program.

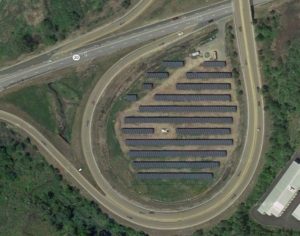

Solar arrays, such as this facility along I-90, are being developed on MassDOT’s highway rights of way. Photo: Massachusetts DOT

“The state expects to generate at least $15 million in savings over the contract period. These savings include about $2 million in rent from the leases on state properties, money that goes into the state’s transportation fund. What’s more, the arrangement entailed zero upfront capital cost for us,” according to Oliver.

Another advantage of forming a public-private partnership is the generous incentives available to the private sector partner. In this case, besides receiving a federal income tax reduction, its partner also is tapping into the state’s Solar Renewable Credits (SREC) system. For its part, MassDOT obtains all net metering credits and associated energy savings. The state’s net metering policy allows a customer to sell power generated by distributed generation back to the grid at a certain price (the meter spins backwards).

“We are purchasing 100 percent of the electricity these solar farms are generating,” explains Oliver. “And because our partner is benefitting from the solar incentives, the purchase rates we have been able to negotiate are significantly lower than current utility rates. At this point, the solar power from the ten planned sites can meet approximately six percent of our needs; we expect that figure to rise as more solar farms from our partnership enter the grid.”

The solar program also brings strong environmental benefits. The power being generated will produce zero greenhouse gas emissions, says Oliver, thereby supporting Massachusetts’ commitment to a green and clean economy. It also supports MassDOT’s GreenDOT sustainability initiative.

“Once we fully reach our goal of generating 6 megawatts (MW) of electricity per year, we anticipate a CO2 emissions reduction of approximately 6.8 million pounds annually due to replacing fossil fuel electricity in the grid with solar power,” Oliver explains. “That is the equivalent of annual greenhouse gas emissions from 630 passenger vehicles.”

Trending

MassDOT has joined a small but growing number of state DOTs that are beginning to utilize highway rights-of-way (ROW) as locations for siting renewable energy production facilities. Oregon led the way in 2008, becoming the first agency in the United States to install a solar panel array along a highway ROW (see related case study). Over the next several years, Ohio and Colorado followed suit. In addition, at least seven state DOTS have constructed solar array or wind turbine installations at rest areas or carports that abridge highways, according to a recent FHWA publication.

Original Impetus, Careful Site Selection

The agency began its foray into the solar energy field in 2011 by releasing a parcel of state land adjacent to a highway to the adjoining town. The town had received an American Recovery and Reinvestment Act grant to produce solar power for its water treatment plant.

“Actually, we received indirect benefits from the project in that the public began to become accustomed to the concept of solar panels being installed next to a highway,” Oliver explains.

During that same year, her agency was beginning to have discussions about developing what now is the MassDOT solar program.

“One of the first things we did was contact our counterparts in Oregon,” Oliver explains. “Although the business model we eventually selected was different, many other components were the same. ”

The agency began with a small pilot project in the western part of the state designed to supply one-third of the energy needs of a nearby District Highway Administration building. Then it was time to move into the next phase, its multi-facility program.

“Realizing that site selection was one of the most critical elements, we hired a consultant to do the evaluation,” says Oliver.

Criteria for selection included parcel size and orientation, any existing environmental concerns, distance from the grid, easy access during construction, no interference with highway operation, and no conflict with future transportation use. Another consideration was whether a site was adjacent to a federally-funded highway, which would mean obtaining FHWA approval. Finally, if either environmental concerns or a solar zoning by-law was present, town approval would be needed.

Once sites were selected, a Request for Response (RFR) was sent out and the current partner company was selected after a three-stage competitive process. Prior to the issuance of the RFR, the Department updated its utility accommodation policy in coordination with the FHWA Mass division. Its policy now includes guidelines for renewable energy technologies. It also outlines safety criteria and design standards, the project development process, compensation requirements, and relevant license and lease agreements.

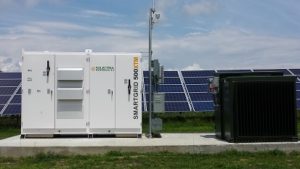

Less conspicuous than the rows and rows of solar panels, the inverter, transformer and data acquisition system are the heart and the brain of a solar farm. (Photo: Massachusetts DOT)

Multiple Installations, Multiple Advantages

“Developing multiple sites across the state under the same program umbrella makes us somewhat unique,” says Oliver. “From our perspective, this approach has a number of advantages.”

First, she explains, it requires only one procurement document, and the process is carried out through a single open bid. Second, with multiple sites in the same project, the owner and operator of the solar farms may be able to purchase equipment and subcontractors’ services in bulk at a discount, and construction mobilization can occur at multiple sites simultaneously.

“In addition,” according to Oliver, “we have been able to learn through experience as we move through the program and integrate more strategic approaches along the way.

Replicability

Other states may be well positioned to create similar programs, she said. Those that decide to pursue such a program should be aware of any site conditions or regulatory constraints that can affect generation capacity as well as available incentives.

“In our case, for instance, construction for the five sites in Phase 1B originally was slated to begin in spring 2015. However, that start date has been put on hold due to the situation of excess-demand for net metering incentives in Massachusetts.”

Oliver also advises that other states “work very closely with other divisions and sections to incorporate all concerns and requirements during site selection and development.”

Fortunately, she continues, her Planning Division uses a 25-year projection window, an extremely compatible timeframe in this case. She and her team members maintained constant communication throughout the process, especially during site selection.

Oliver concludes, “So far, the decision to use some of our highway right-of-way land to produce solar energy has proven to be extremely sound. And looking ahead, we anticipate only more of the same. ”

For more information, contact MassDOT Project Manager Dr. Hongyan (Lily) Oliver at [email protected]/us or link to https://www.mass.gov/massdot-solar-energy-program.
